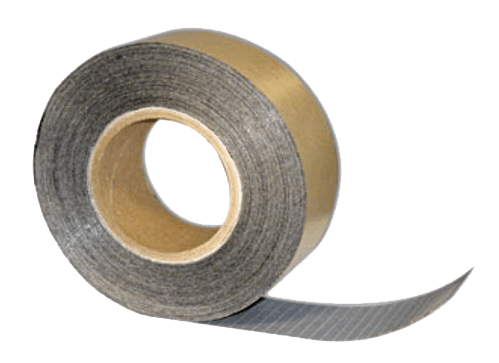

CARPET TAPE
LIGHTWEIGHT CONSTRUCTION. DOUBLE-SIDED. PRESSURE-SENSITIVE REINFORCED POLYESTER TAPE.
Carpet tapes are used to adhere aircraft floor coverings such as carpet, padding and galley mats to aircraft flooring. There is no residue when removed from aircraft floor surface.
Meets the latest EU REACH, US EPA and Boeing environmental safety requirements.
CARPET TAPE
- Lightweight Construction
- OT-40N Is much Lighter Than Standard Cloth Carpet Tapes
- High Strength Flame Retardant Adhesive Bonds Well To Surfaces
- OT-40N Is Repositionable & Clean Removable
- For Carpet & Non-Textile Flooring Installation On Interior Floors & Stairs Of Aircraft
- Certifications: FAR 25.853 (a), Boeing: BMS5-133
- Differential Adhesive – High Tack adhesive on Liner Side & Less Tacky Adhesive on exposed Side to adhere to the floorboard
- Environmentally-Friendly – Meets the latest EU REACH, US EPA and Boeing environmental safety requirements
- Meets FAA Requirements For Use In Aircraft
- Made in USA
CARPET TAPE OFFERS:
- Quick removal due to differential tack
- Leaves no residue after removal
- Saves labor hours
- Less stocking space required
- 60YD rolls are using the same or similar boxes as packaging both holding 24 rolls for a 2″ width.
| Properties | Value | Test Method |
|---|---|---|
| Weight | 5.0 oz./sq. yd., max. | 170 g/m2, max. 4.5 oz./sq. yd., typical | 153 g/m2, typical | |
| Peel Strength | ||
| Side 1 (Dark Gray) | 2.0 lbs./in., min. | 8.8 N/25 mm., min. | LTM 14, 180o Peel-Aluminum |
| Side 2 (Black) | 5.0 lbs./in., min. | 21.8 N/25 mm., min. | LTM 14, 180o Peel-Aluminum |
| Lap Shear Strength | 30 lbs./in., min. | 132 N/25 mm., min. | LTM 70 Side 2, Black |
| Tensile Strength | 20.0 lbs./in., min. | 88 N/25 mm., min. | LTM 23 |
| Flammability, Tape only | Pass | LTM 11C: Vertical Burn Test (12 secs) |
| Specifications l Shelf Live | FAR 25.853, FAR 25.855 | 36 months BMS5-133 Type IV, Class 1 | 36 months BAMS 535-002 | 60 months | |
| Environmental Regulations Compliance | EU REACH, US EPA; Boeing BDM-1712, RoHS | |
| Packaging | ||
| Standard Roll Length | 60 yard (55 meters) | |
| Standard Roll Width | 2 and 3 inches (50.8 and 76.2 mm) Custom widths available on request | |
| Color | Side 1: Dark Gray Side 2: Black |
